Tristar D400 3 flange gully grate 430mm x 370mm clear opening with 150mm frame depth

Standards:

BS EN 124-2

CD 526 (formerly HA 102/17)

CD 534 (formerly HA 104/09)

BS EN 124 Class: D400

BS EN 124 Group:

3

4

Third party certified: Kitemark

CD 526 hydraulic capacity: R

Tristar D400 3 flange gully grate 430mm x 370mm clear opening with 150mm frame depth

Frame shape: Rectangular

Manhole shape: Rectangular

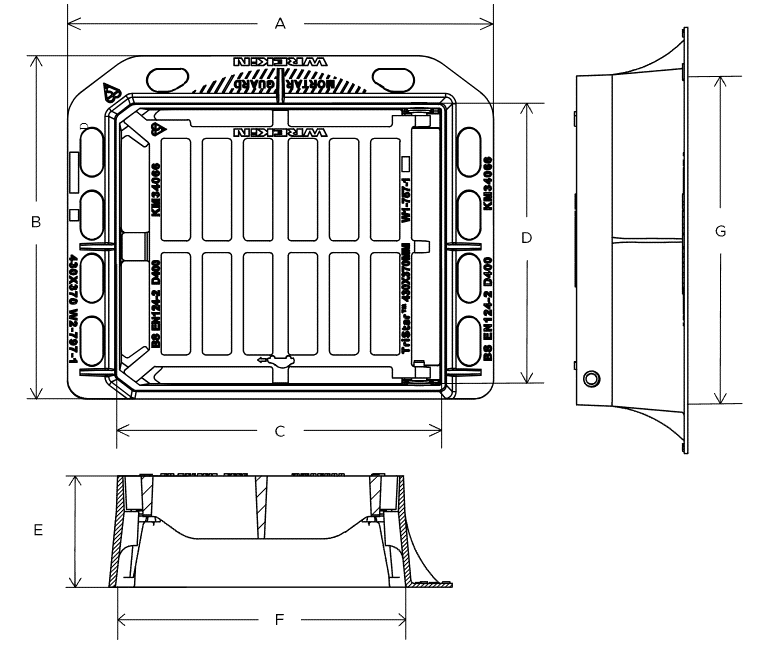

Overall frame (A x B): 575 mm x 465 mm

Clear opening (C x D): 430 mm x 370 mm

Frame depth (E): 150mm

Base opening (F x G): 450 mm x 390 mm

Waterway area: 1,050cm²

Stock code: DGH0D6/4337/KT

Primary material: Ductile iron

Range: Tristar

Category: Gully grate

Flanges: 3

Security: Captive hinges reduce theft risk whilst
allowing easy lifting.

Available Options: Screw locking deters unauthorised
access to the chamber. An extended shank socket set is required to engage the
locking screw.
