HOMESTREAM RAINWATER HARVESTING
The Homestream range of rainwater Harvesters are compact, packed with technology, and cost effective. The Homestream outperforms any
domestic rainwater harvesting system with the ability to provide rainwater to
multiple outlets with a maximum power consumption of 1.1 Watts.
Unlike other rainwater harvesting systems, the Homestream is able to supply water to a high-demand property via it’s intelligent control system.

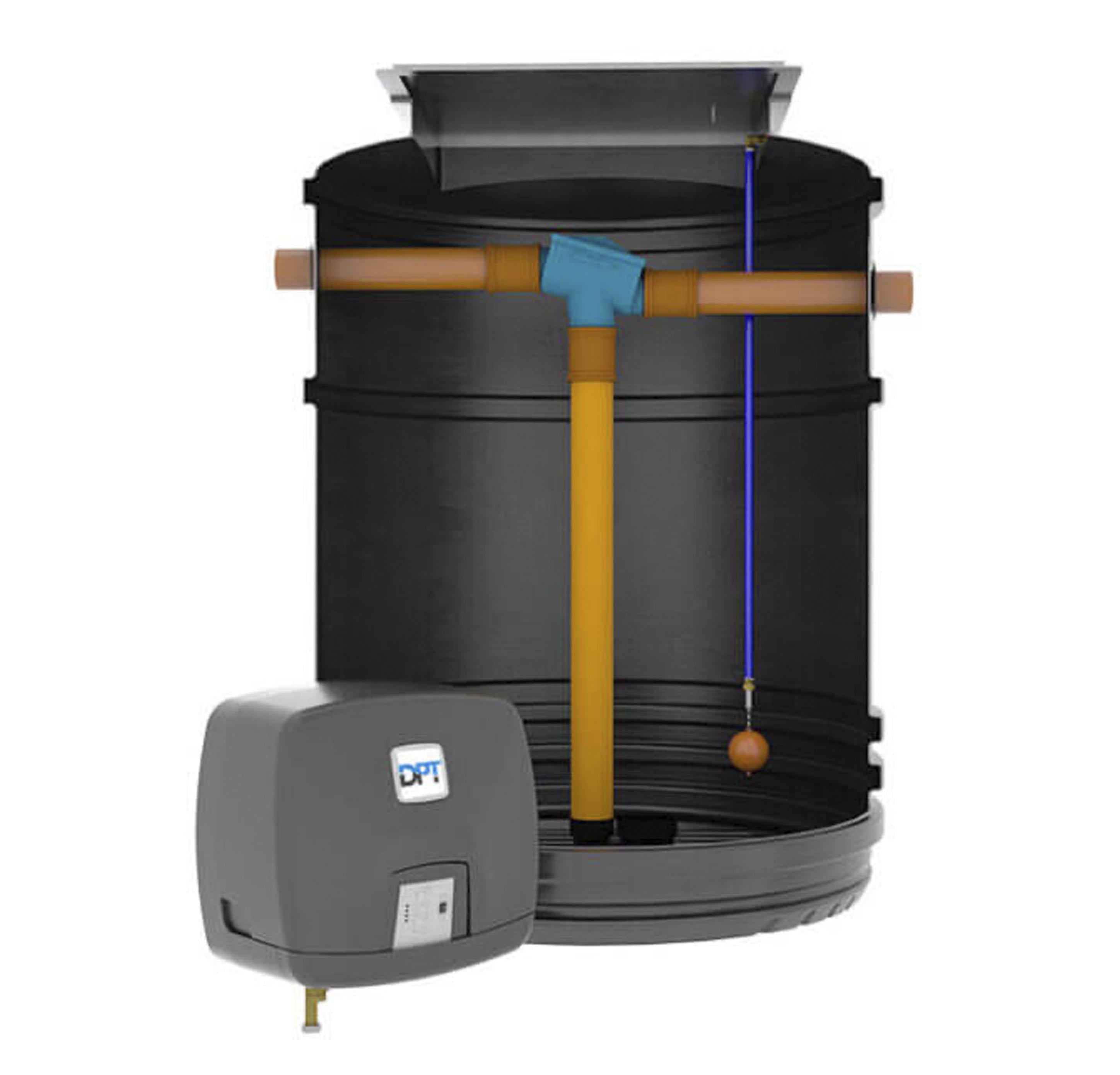

The system comes with two main components, these are the underground storage chamber and relevant components and the above ground control unit. The system has been designed to make it as easy as possible for the home owner to install.
Simply connect power and discharge pipeline, and the system will deliver pressurised, filtered harvested rainwater to outside taps, toilets, and more..
The Homestream comes in two options, a suction lift version and a pump assisted version.

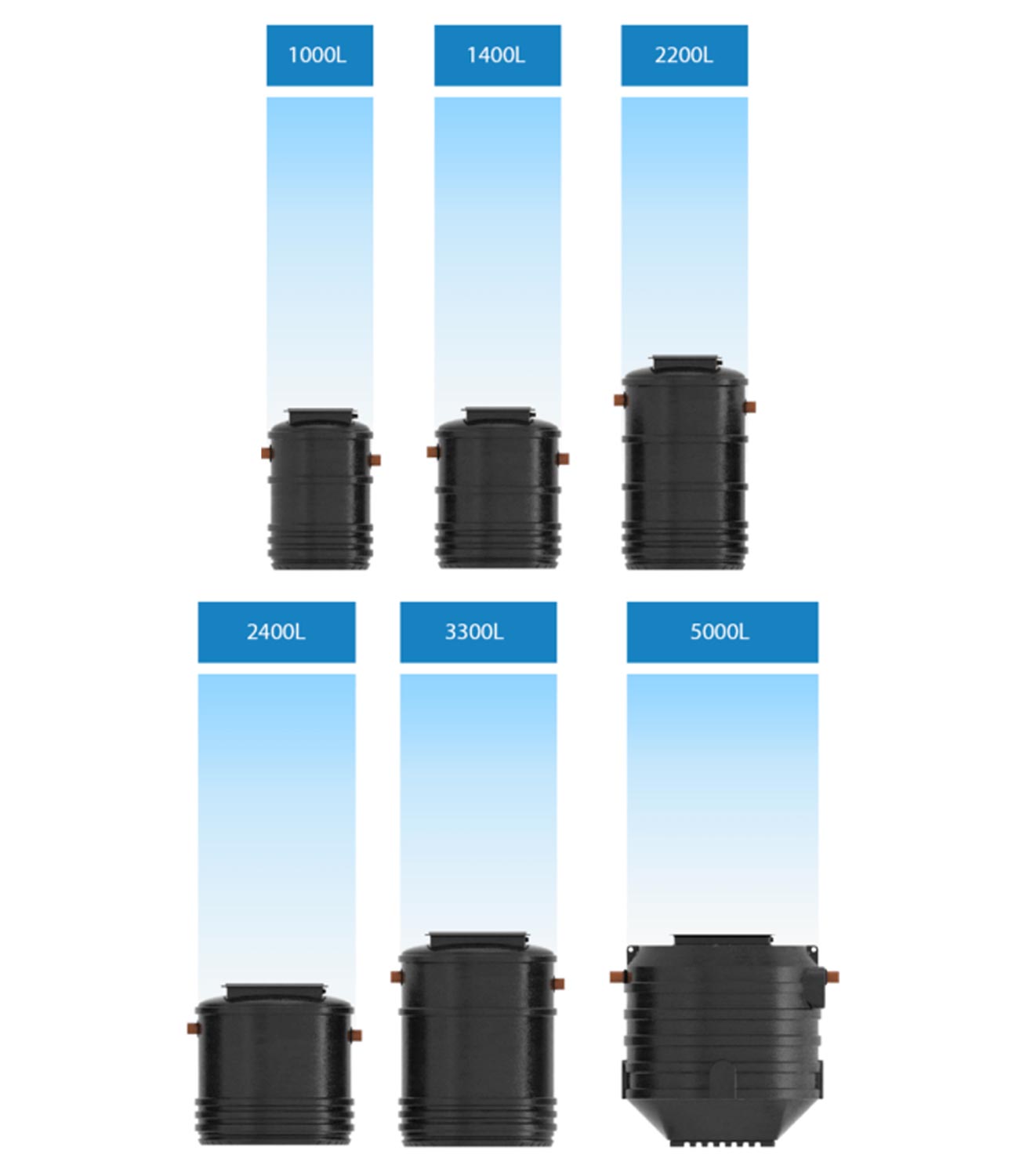

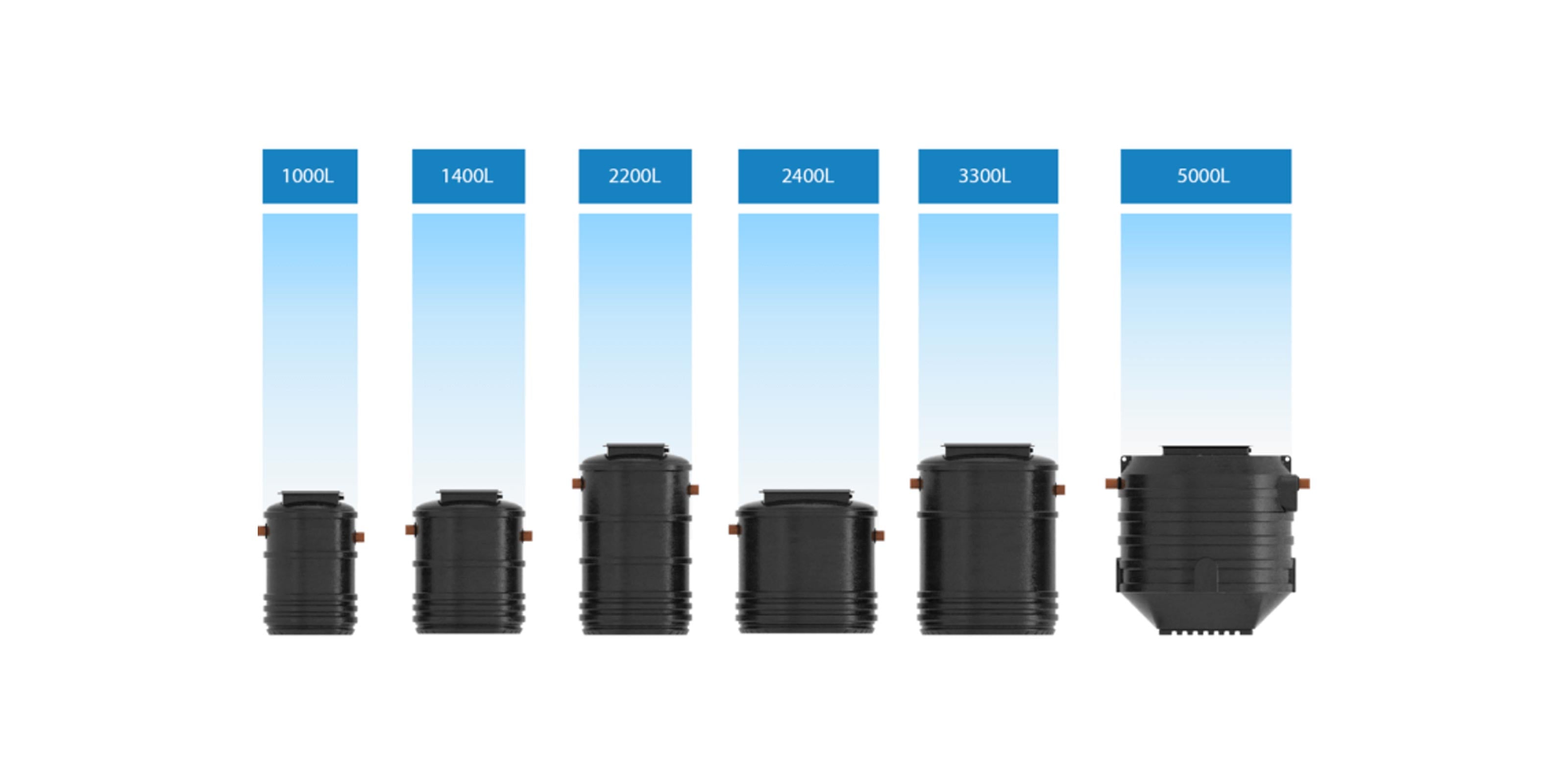

Available in a range of different capacities, from 1000L up to 5000L.
CONTACT US FOR PRICING
ODS Ltd are an approved Direct Pumps and Tanks distributer, for further information or pricing of the Homestream Rainwater Harvesting System please contact us at sales@odsltd.co.uk
INTELLIGENT CONTROL UNIT
The Homestream control unit can be used for the use of filtered rainwater for flushing toilets, connecting a washing machine and an outdoor tap. It is also suitable for continuous consumption such as garden irrigation. The unit is compact and suitable for wall mounting.
The system has been designed to be “plug and play” in a compact form factor. The system is built in accordance with ENI 717 and comes an AB airgap and a 7 litre internal chamber.
CONTROL UNIT FEATURES
- Self-priming centrifugal pump
- Automatic pressure control
- Motor controlled ball valve
- Instant switch between rain and mains water
- 7 litre break tank
- Soundproof housing
WHAT IS FLOATING SUCTION?

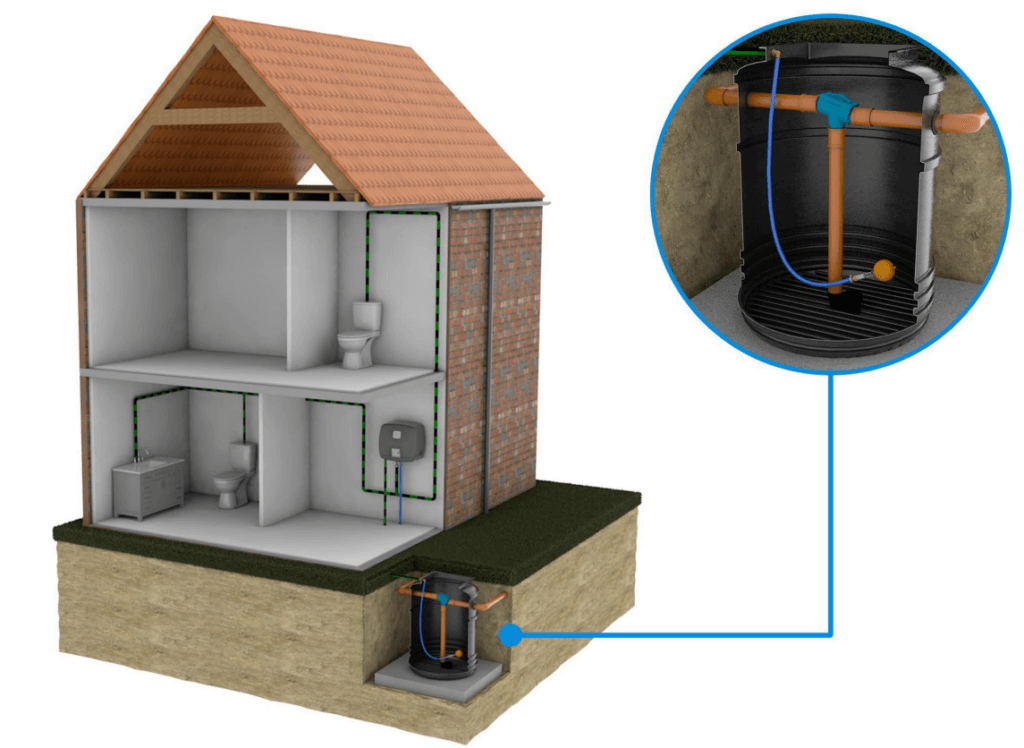

A floating suction filter is an extraction hose that comes with an attached ball float that enables the collected rainwater water to be extracted from the cleanest part of the tank.
The cleanest part of the water is below the surface, allowing the system to access water with no sediment that may have formed in the bottom of the chamber.
WHEN SHOULD IT BE USED?
Floating suction can be used with the Homestream system when the main control unit is no more than 3 meters from the storage tank.
If your control unit sits more than 3 meters from the Homestream chamber, you will require a “pump assisted” system to ensure enough water is fed to the property to meet demand.
WHAT IS PUMP ASSIST?
A pump assist system is a method of extracting rainwater from the Homestream via a submersible pump with a debris filter, this enables the collected rainwater water to be extracted from the tank and fed to the control unit for distribution to the property.
WHEN SHOULD IT BE USED?
Pump assist should be used with the Homestream system when the main control unit is more than 3 meters from the storage tank.
If your control unit sits more than 3 meters from the Homestream chamber, you will require a “pump assisted” system to ensure enough water is fed to the property to meet demand.
WHAT IS FLOATING SUCTION?
A floating suction filter is an extraction hose that comes with an attached ball float that enables the collected rainwater water to be extracted from the cleanest part of the tank.
The cleanest part of the water is below the surface, allowing the system to access water with no sediment that may have formed in the bottom of the chamber.
WHEN SHOULD IT BE USED?
Floating suction can be used with the Homestream system when the main control unit is no more than 3 meters from the storage tank.
If your control unit sits more than 3 meters from the Homestream chamber, you will require a “pump assisted” system to ensure enough water is fed to the property to meet demand.
WHAT IS PUMP ASSIST?
A pump assist system is a method of extracting rainwater from the Homestream via a submersible pump with a debris filter, this enables the collected rainwater water to be extracted from the tank and fed to the control unit for distribution to the property.
WHEN SHOULD IT BE USED?
Pump assist should be used with the Homestream system when the main control unit is more than 3 meters from the storage tank.
If your control unit sits more than 3 meters from the Homestream chamber, you will require a “pump assisted” system to ensure enough water is fed to the property to meet demand.
