Graf 3000L Platin Shallow Dig AA Eco-Plus RWH System

SKU: G70370

GRAF UK

Graf 3000L Platin Shallow Dig AA Eco-Plus RWH System

Name: Graf 3000L Platin Shallow Dig AA Eco-Plus RWH System
Brand: Online Drainage Solutions
SKU: G70370
Price: 2946.7 GBP
Availability: InStock

0.0

£2,946.70

Tax excluded.

Lid Type:

Pedestrian

Pedestrian Vehicle

Graf Platin Risers:

Not required - standard invert

Not required - standard invert 250mm 1000mm

Variant

Quantity:

Do you need this product installed?

Please contact us for our installation options

Delivery available within 3-5 working days from payment

Please contact us for all our delivery options

GRAF UK

Graf 3000L Platin Shallow Dig AA Eco-Plus RWH System

Need Installation or Maintenance? We supply, install and maintain pumping stations, sewage treatment plants and other drainage products.

Find Out More

Description

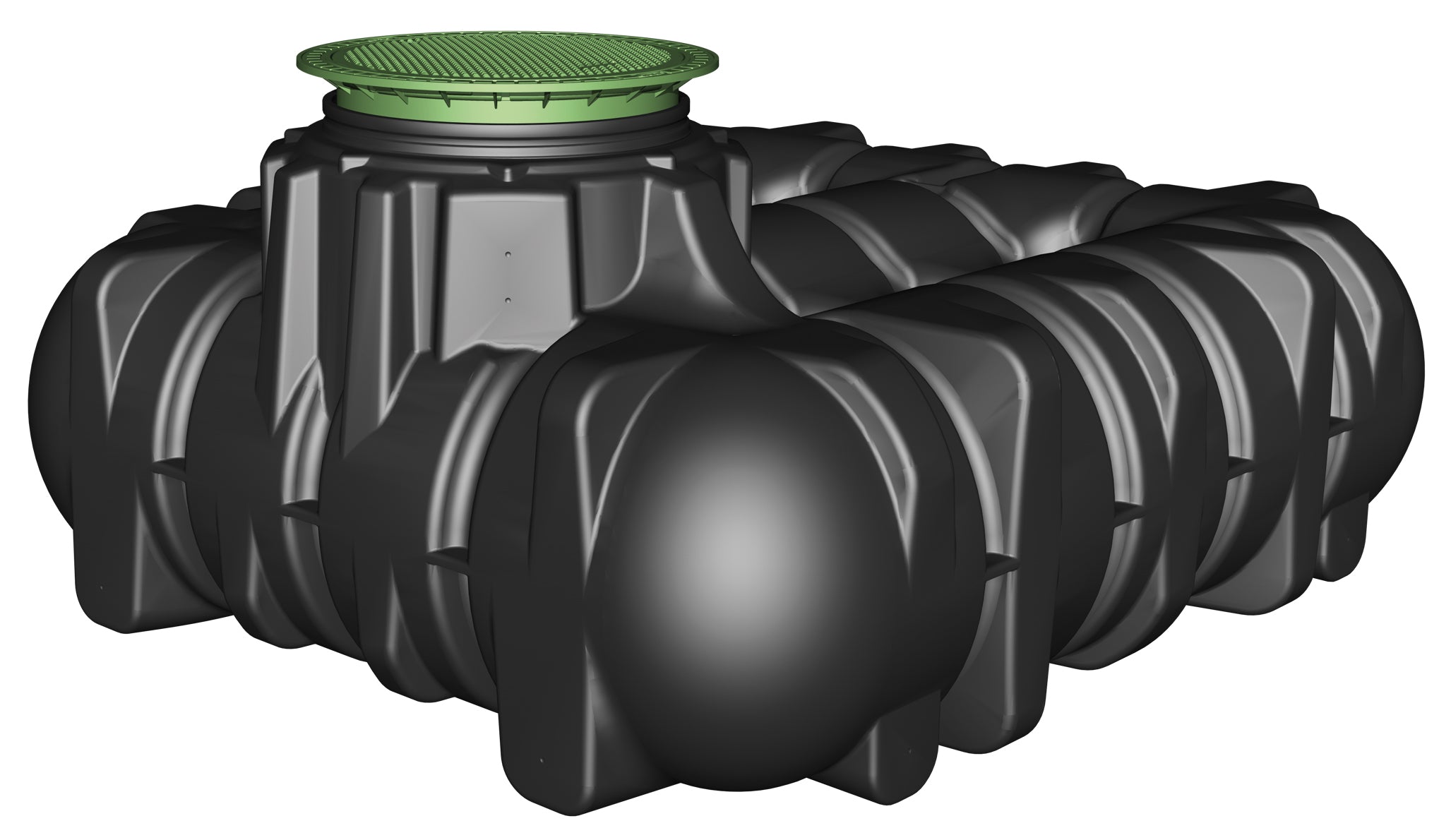

3000L Platin AA Eco-Plus Rainwater Harvesting System

Tank: Platin (flat/shallow profile) | Sizes: 1,500–7,500L
The Platin AA Eco-Plus keeps your underground tank reserved for rainwater only. Mains water feeds directly into your plumbing through a separate cistern, so every litre of tank capacity collects rainfall rather than storing water you already pay for. The flat-profile Platin tank needs less excavation depth than traditional tanks and installs with gravel backfill instead of concrete. Supplies toilets, washing machine, garden irrigation and jet washing.

Tanks from 1,500 to 7,500 litres.

Free UK mainland delivery included.

Dimensions

SKU: G70370

Tank Volume: 3000 Litres

Length: 2450mm

Width: 2100mm

Height: 1050mm

Access Diameter: 600mm

Weight: 180kg

Specification

3000L GRAF Platin Shallow Dig AA Eco-Plus RWH System

Pedestrian lid as standard. Vehicular option available.

Adjustable lid allows up to 200mm of adjustment.

Made from high quality 100% re-cycled plastics.

15 year warranty

See downloads section for datasheets and more information

Delivery

FREE delivery to Mainland England and Wales. Additional delivery charges will apply for some areas of Scotland, please contact us for further details. Deliveries are subject to suitable access for a large goods vehicle.

It is the customers responsibility to organise suitable offloading equipment, this product is delivered to the kerbside.

Estimated delivery time: 5 - 10 Days from date of payment.

Downloads

3000L Graf Platin Tank

Platin Tank Specification Sheet

Graf AA Eco Plus Rainwater Harvesting Package

Graf AA Eco Plus Rainwater Harvesting System Installation and Maintenance

Eco Plus Control Panel Video Tutorial

Graf Platin Installation Manual

Graf Platin 15 Year Warranty
