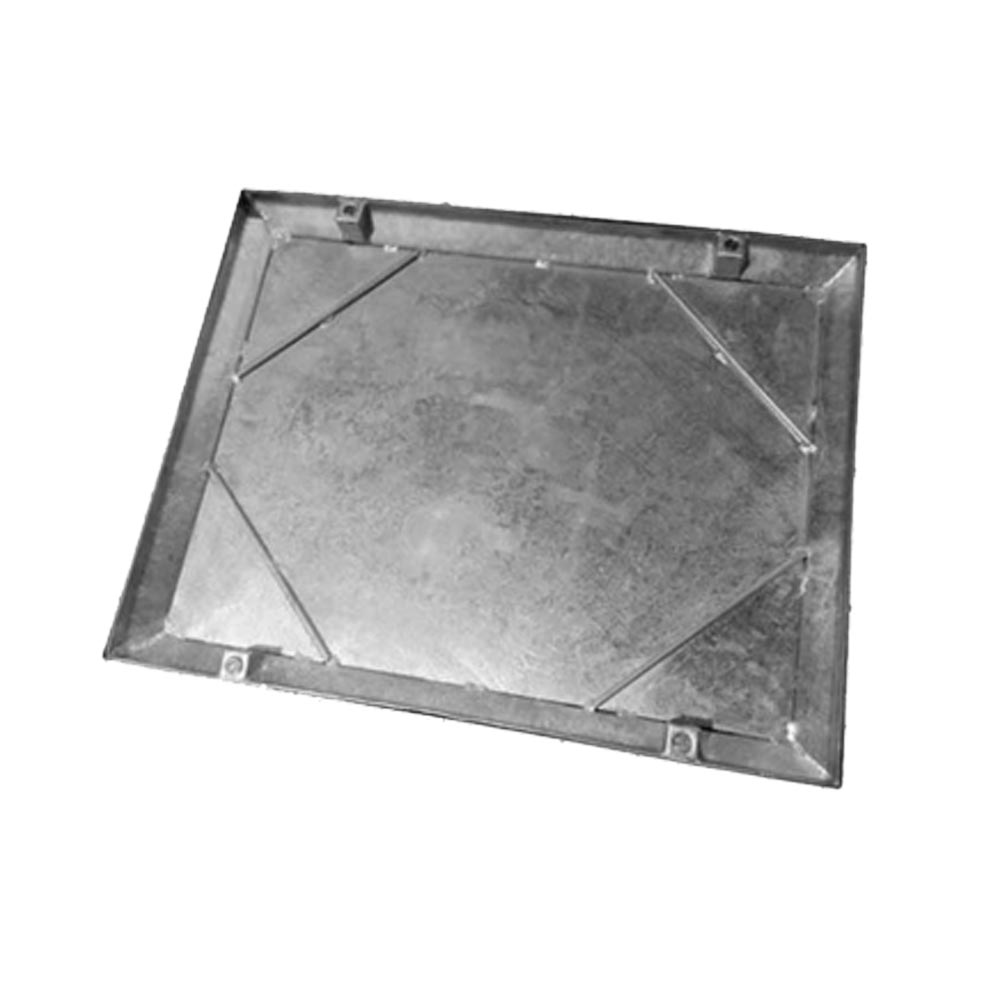

Steel Recessed Access Cover, double seal and locked, 750mm x 600mm clear opening, 42mm tray depth, 58mm frame depth, Loading code M

Name: Steel Recessed Access Cover, double seal and locked, 750mm x 600mm clear opening, 42mm tray depth, 58mm frame depth, Loading code M
Brand: Online Drainage Solutions
SKU: C271M/075060
Price: 152.05 GBP
Availability: OutOfStock

0.0

£152.05

Sold out

Tax excluded.

Delivery within 3-5 working days from payment

Please contact us for all our delivery options

Wrekin Products

Steel Recessed Access Cover, double seal and locked, 750mm x 600mm clear opening, 42mm tray depth, 58mm frame depth, Loading code M

Need Installation or Maintenance? We supply, install and maintain pumping stations, sewage treatment plants and other drainage products.

Find Out More

Description

Stock code: C271M/075060

Primary material: Steel

Category: Access cover

Flanges: 4

Gross laden vehicle weight: 10 tn

Load duty: Light / medium duty

Slow moving wheel load (pneumatic tyres): 2.5 tn

Seal type: Double seal

Wrekin loading code: M

Dimensions

Frame shape: Rectangular

Overall top of frame (A x B): 685 mm x 835 mm

Clear opening (C x D): 750 mm x 600 mm

Frame depth (E): 58mm

Base opening (F x G)

Specification

Hot dipped galvanised for corrosion resistance.

Full loading capability is achieved when fully filled with
grade C25 concrete

Mild steel - Galvanised to BS EN ISO 1461

Locking screws - Countersunk, slotted, M8 x 45 mm long

Unlocking - Flathead screwdriver

Lifting keys - Wire J-shaped key (Wrekin product code
KEYSRECESSED)

The vertical top edge of the cover will accept up to a 12 mm
tile

Delivery

Availability is 3-5 working days from payment.
