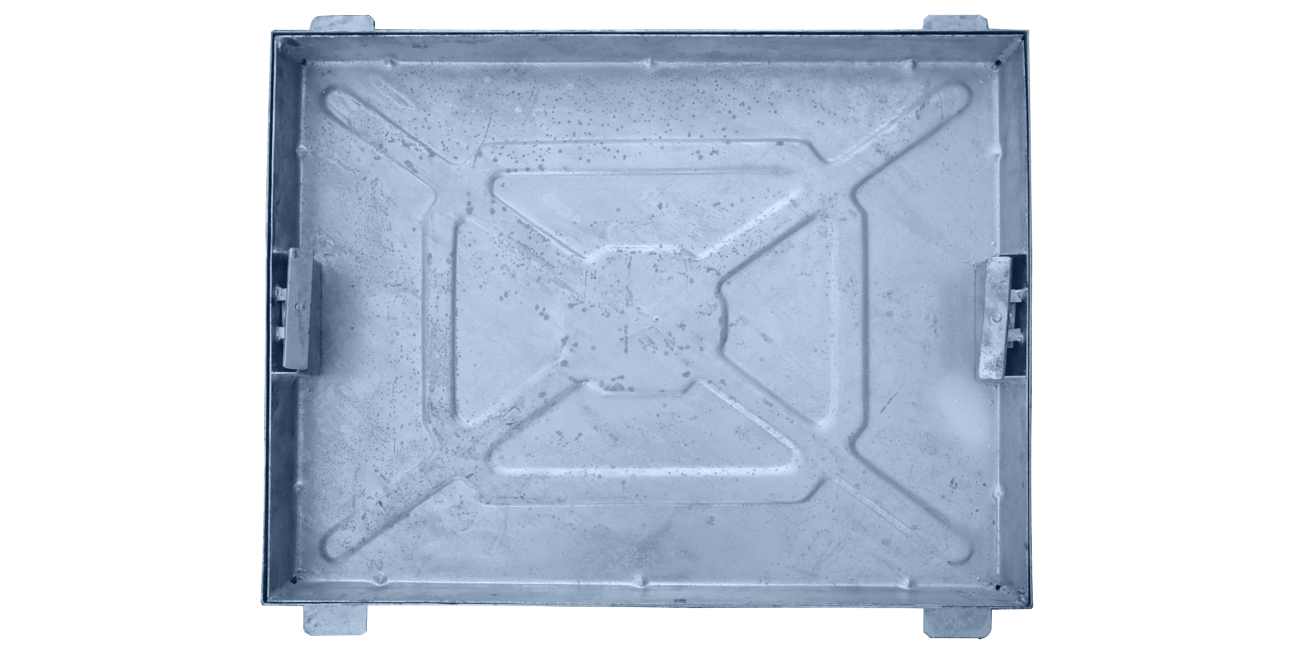

Recessed cover for block paving, 600mm x 450mm clear opening, 46mm tray depth, 51mm frame depth, Wrekin loading code M

Name: Recessed cover for block paving, 600mm x 450mm clear opening, 46mm tray depth, 51mm frame depth, Wrekin loading code M
Brand: Online Drainage Solutions
Price: 35.26 GBP
Availability: OutOfStock

0.0

£35.26

Sold out

Tax excluded.

Delivery within 3-5 working days from payment

Please contact us for all our delivery options

Wrekin Products

Recessed cover for block paving, 600mm x 450mm clear opening, 46mm tray depth, 51mm frame depth, Wrekin loading code M

Need Installation or Maintenance? We supply, install and maintain pumping stations, sewage treatment plants and other drainage products.

Find Out More

Description

Stock code: C231M/060045/LH

Primary material: Steel

Category: Access cover

Flanges: 4

Gross laden vehicle weight: 10 tn

Load duty: Light / medium duty

Slow moving wheel load (pneumatic tyres): 2.5 tn

Wrekin loading code: M

Dimensions

Frame shape: Rectangular

Overall top of frame (A x B): 590 mm x 640 mm

Clear opening (C x D): 600 mm x 450 mm

Frame depth (E): 51mm

Base opening (F x G)

Specification

Can be installed by a single person, providing labour cost
savings.

Hot dipped galvanised for corrosion resistance.

Designed with tapered sides and centralised lifting points
to allow the cover to slide out of the frame.

Delivery

Availability is 3-5 working days from payment.
