Quantum 10 Person Gravity Discharge Sewage Treatment Plant

QUANTUM is an advanced Activated Sludge
Process (ASP) sewage treatment plant.

Advantages of installing a Quantum system:

• Low purchase and installation cost.
• Ultra-compact tank (smallest on the UK market)
• Extremely quiet operation.
• No odour (if installed and maintained correctly).
• Low electrical demand.
• Adjustable treatment process to suit the number of people using it.
• Optional invert depths (550mm standard, 1000mm maximum with the purchase of an access extension turret).
• Available with gravity or pumped outlets.
• Extremely clean effluent - up to 97.3% pollutant reduction.
• Internal blower as standard for all gravity discharge systems (external blower box to be purchased separately if required).
• External blower box supplied with all pumped discharge systems.
• 20 Year tank warranty.
• Tested and certified to EN 12566-3.

For full description and annotated drawings please look at the Quantum brochure in the downloads section.

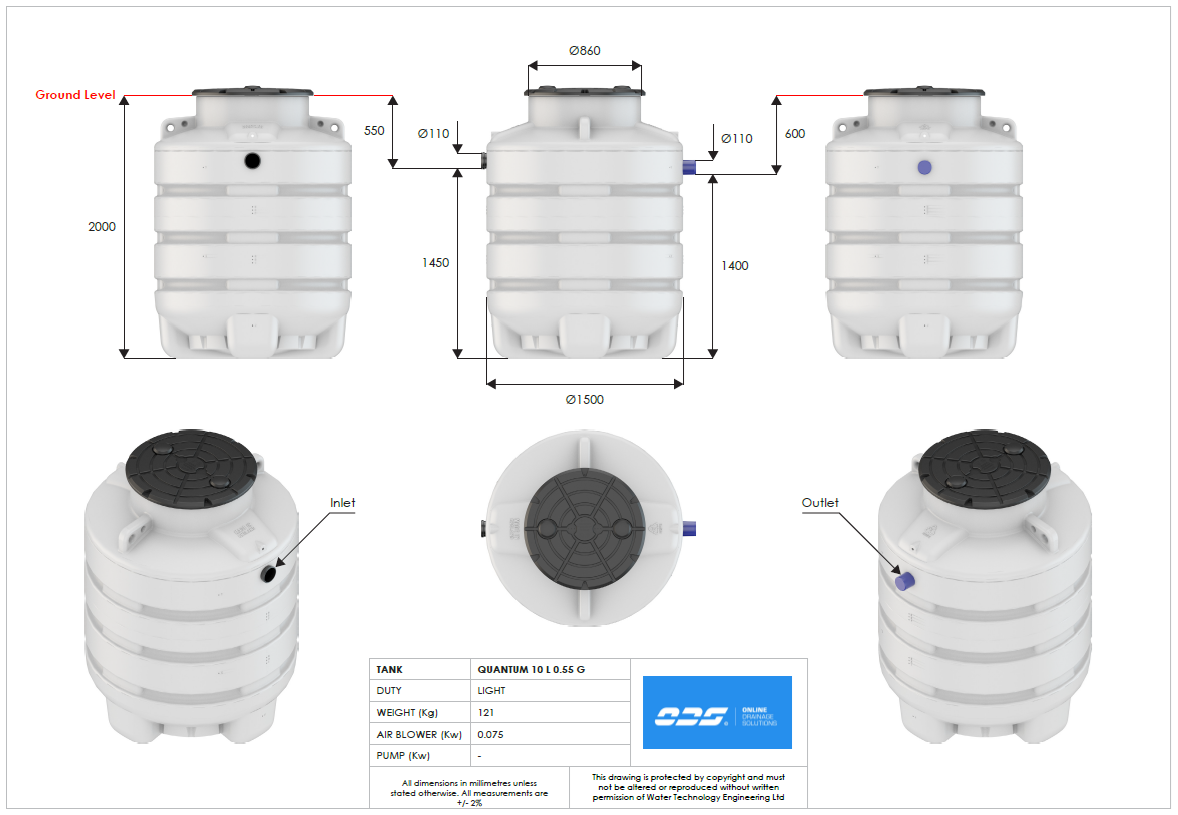

Model: Quantum 10 Gravity Discharge

Diameter: 1500mm

Depth in ground: 2000mm (2450mm with access extension turret)

Base to inlet: 1450mm

Base to outlet: 1400mm

Inlet invert: 550mm standard (1000mm maximum with access extension turret)

Outlet invert: 600mm standard (1050mm maximum with access extension turret)

Model: Quantum 10 Gravity Discharge

Population: 10 person

Max. Hydraulic Load (litres /day): 1500

Organic Load (g BOD5/day): 600

Ammonium-Nitrogen NH4-N(g): 80

Blower box: Internal

Diameter: 1500mm

Depth in ground: 2000mm (2450mm with access extension turret)

Base to inlet: 1450mm

Base to outlet: 1400mm

Inlet invert: 550mm standard (1000mm maximum with access extension turret)

Outlet invert: 600mm standard (1050mm maximum with access extension turret)

Power: 75w blower

Desludging Interval (months): 3 -18 (depending on loading)

Weight: 121Kg
