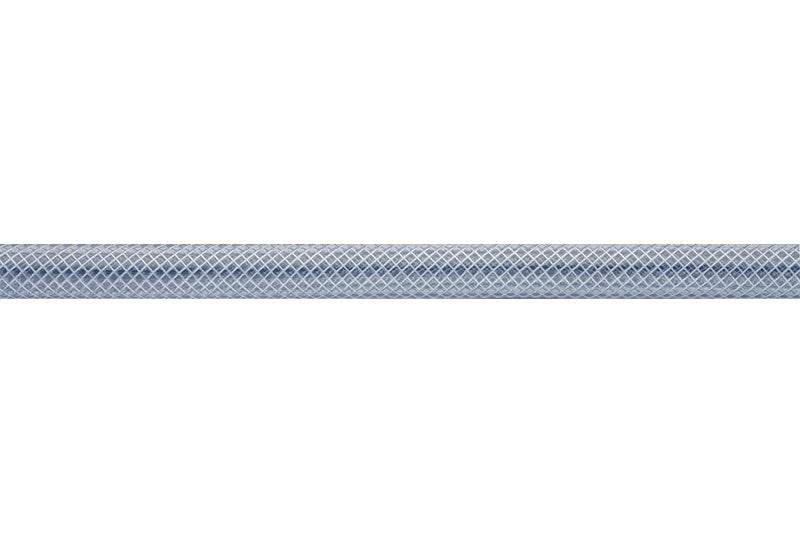

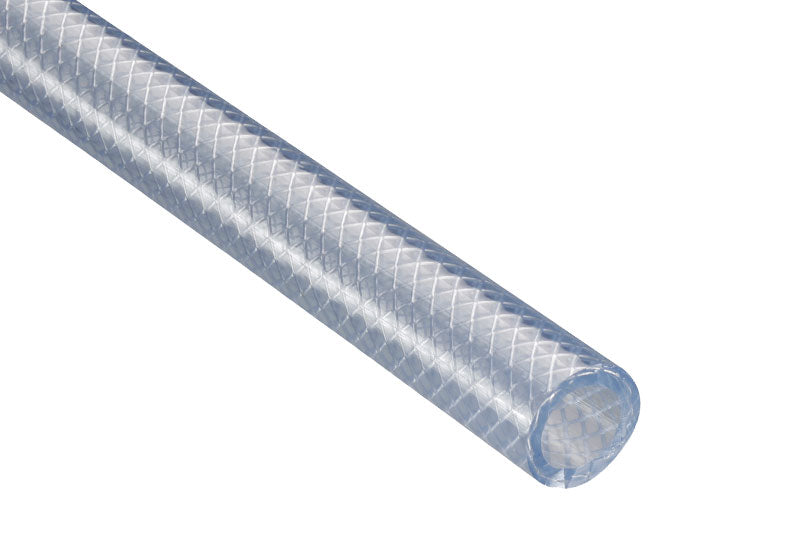

Clear Braided PVC Air Hose - 30m Coils

Name: Clear Braided PVC Air Hose - 30m Coils
Brand: Online Drainage Solutions
Price: 36.0 GBP
Availability: InStock

0.0

£36.00

Tax excluded.

Clear Braided PVC Air Hose Size:

ID 6.3mm (1/4") - OD 10.5mm

ID 6.3mm (1/4") - OD 10.5mm ID 10mm (3/8") - OD 14mm ID 12.5mm (1/2") - OD 17.5mm ID 19mm (3/4") - OD 24mm ID 25mm (1") - OD 31mm ID 32mm (1 1/4") - OD 40mm ID 38mm (1 1/2") - OD 46mm ID 50mm (2") - OD 60mm

Variant

Quantity:

Delivery within 3-5 working days from payment

Please contact us for all our delivery options

Griflex

Clear Braided PVC Air Hose - 30m Coils

Need Installation or Maintenance? We supply, install and maintain pumping stations, sewage treatment plants and other drainage products.

Find Out More

Description

Applications:
XL Lightweight Clear Braided PVC Hose can be used to convey many liquids and gases under pressure. Applications include factory air lines, pneumatic equipment and general workshop use.

Construction:
Two layers of clear flexible PVC bonded together
encapsulating high tensile polyester fibres.

Colour:
Standard - Clear

Temperature Range:

-10°C to +60°C
In accordance with BS EN ISO 6224 and BS EN ISO 5774.

Size Range:
¼” to 2”

Special Features:
FDA and EU10-2011 approved compound for
food contact.
Lightweight version of HN for less arduous applications.
Outstanding resistance to the effects of weather.
Minimum frictional loss is achieved by the smooth bore.
Excellent chemical resistance.

Length:

30m coils but also available in shorter lengths on request.

Dimensions

Size Range 1/4" - 2"

Delivery

Availability is 3-5 working days from payment.

£10 Delivery to Mainland England and Wales. Delivery to other regions on request, please contact us on sales@odsltd.co.uk or 07523 422393.

Downloads

Please find below additional information you can download

Griflex Clear Braided PVC Hose Datasheet 1/4" - 2"
