13000L Graf Carat 73 Person Septic Tank

Name: 13000L Graf Carat 73 Person Septic Tank
Brand: Online Drainage Solutions
Price: 3105.12 GBP
Availability: InStock

0.0

£3,105.12

Tax excluded.

250mm Riser Extension:

No

No Yes

1000mm Riser Extension:

No

No Yes

Vehicle Access Cover:

No

No Yes

Variant

Quantity:

Do you need this product installed?

Please contact us for our installation options

Delivery available within 3-5 working days from payment

Please contact us for all our delivery options

GRAF UK

13000L Graf Carat 73 Person Septic Tank

Need Installation or Maintenance? We supply, install and maintain pumping stations, sewage treatment plants and other drainage products.

Find Out More

Description

13000L Graf Carat septic tank designed for use of up to 73no people.

Shallow dig system which is easy to install.

Designed for gravel backfill (see installation guidelines in download section)

Lightweight and robust.

Low maintenance.

Vehicular lid option available.

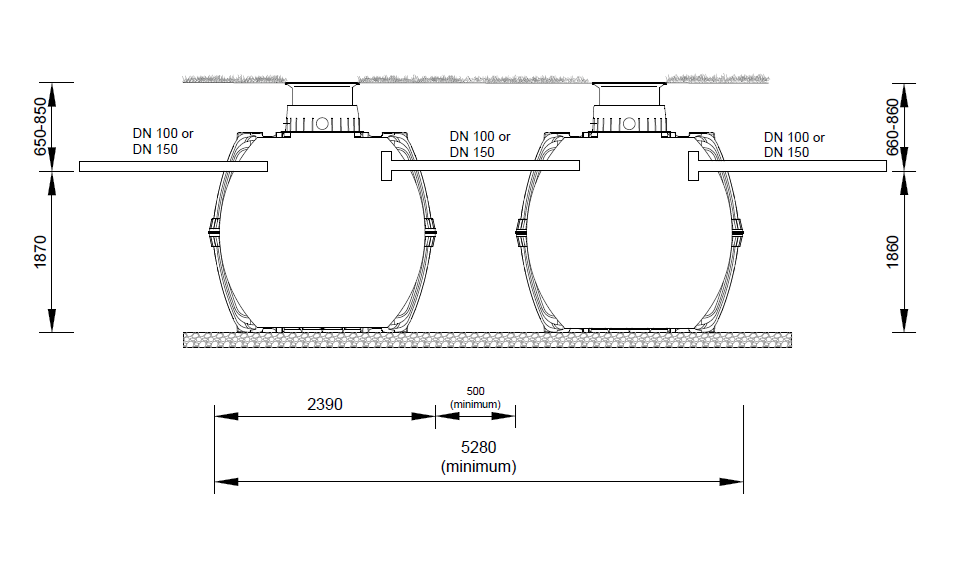

Dimensions

Volume: 13000L (2no 6500L tanks, see dims for each tank below)

Weight: 265Kg

Length: 2390mm

Width: 2190mm

Height: Adjustable 2530mm - 3300mm (max height if risers purchased) - see septic specification sheet in downloads.

Inlet and Outlet Diameter: 110mm

Specification

13000L GRAF Carat

73 person septic tank

Pedestrian lid as standard. Vehicular option available.

Adjustable lid allows up to 200mm of adjustment.

15 year warranty

Delivery

FREE delivery to Mainland England and Wales. Additional delivery charges will apply for some areas of Scotland, please contact us for further details. Deliveries are subject to suitable access for a large goods vehicle.

It is the customers responsibility to organise suitable offloading equipment, this product is delivered to the kerbside.

Estimated delivery time: 5 - 10 Days from date of payment.

Downloads

Graf Carat 13000L Septic Tank

Graf Carat Specification Sheet

Graf Septic Tank Specification Sheet

Graf Carat Installation and Maintenance Instructions

Carat Installation Manual

Graf Warranty

Declaration of Conformity (Stability)

Declaration of Conformity (Water Tightness)

Graf Septic Tank PIA Certificate
